Antenna Masts

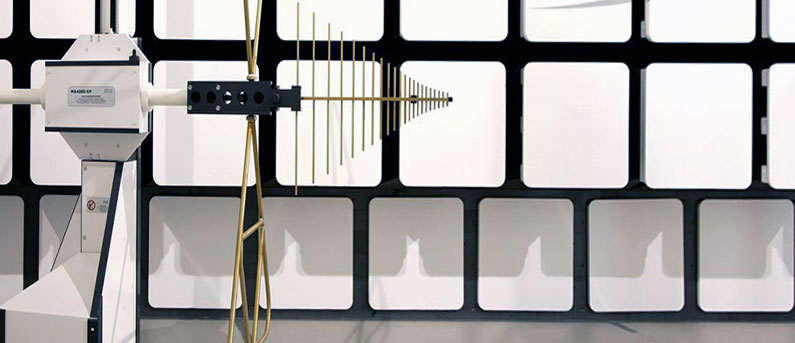

Antenna Masts are an integral part of EMC and RF measurement systems.  Innco system masts are renowned worldwide as the standard benchmark.  Available in manual or automatic, using either pneumatic and or electric driven, the antenna mast design has the capacity to carry antennas of 6kg (MM) and 10kgs (MA) as standard. Higher loads are available upon request.

Unique designs with integrated pneumatic compressors, high speed, high accuracy, Twin Mast, Bore site function and loads as high as 30kgs, are all part of Innco supplied products, to a worldwide customer listing.

Our solutions provide optimized EMC performances, using specially design shielded drive units, which provide the required 20dB below the limit line of CISPR 22 Class B.

Key Facts

  • 1.0...4.0m electrical height adjustment
  • Pneumatic polarisation
  • 6 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Electrical polarisation
  • 10 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 10 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Electric polarisation
  • Polarisation 0°...360° (1° steps)
  • 10 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 10 kg load
  • -12°...+45° tilt angle

Key Facts

  • 1.0...10.0m electrical height adjustment
  • Electrical polarisation
  • 20 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 20 kg load

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 15 kg load
  • -12°...+45° tilt angle
