Dielectric Test Table PT1810-RH

Dimensioins (LxW) 1.8 x 1.0 m
Height 0.8 m
Permissible load max. 120 kg (264 lbs)
Material of Structure Rohacell
Dielectric constant εr 1.04 at 1 MHz
Material of top cover Pertinax (1 mm)
Dielectric constant εr 1.6 at 1 MHz

Brief description

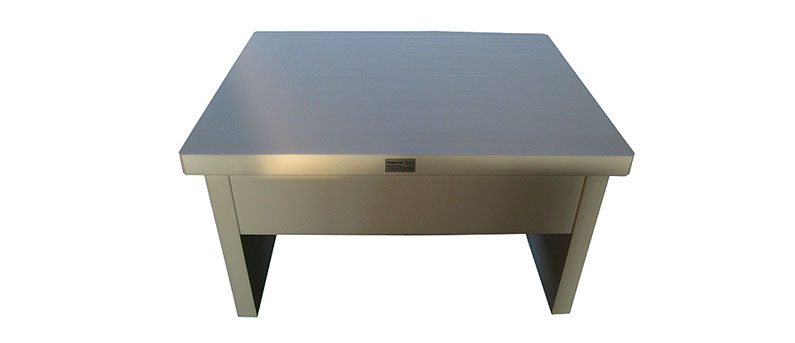

The PT1810-RH is a light-weight and therefore easy movable Test table made of Rohacell with ultra low permittivity. Usual height is 800 mm and would be aligned according to the Turntable beneath. The top plate is equipped by a removable 1 mm protection plate made of Pertinax.

Special dimensions and customized designs are available on request.
