Turn Device DE3800-RH

Total height of rotation axis 1800 mm
Max. load 10 kg
Material rotation plate Rohacell, with dielectric constant below 1.2
Material bottom & side Körmacell with PVC profile
Positioning Accuracy +/- 1°
Rotating angle -15°...385°
Rotating time max. 2,5 r/pm
Driven by Kevlar Belt
Motor electronic EC motor 150 W
Controller Microcontroller
Drive unit shielded and radio interference suppressed 20dB under Class B
Temperature working range +5 °C...+40°C
Input current max. 1,6 A
Operating voltage 115 V / 230 V AC (50/60Hz)

Brief description

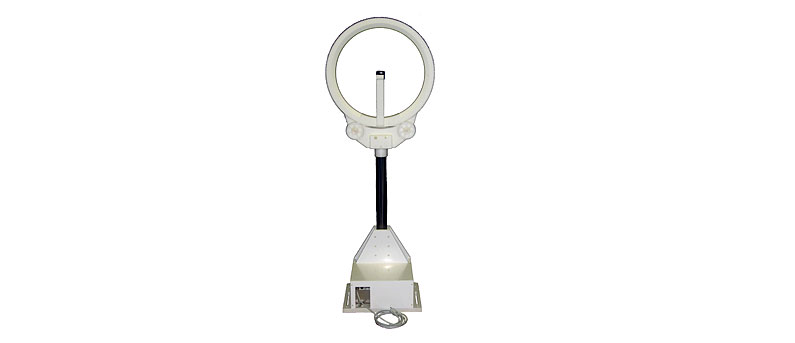

The DE 3800-RH turn device is specifically designed for measurement of notebook pc, mobile phones with or without “artificial head”. With exception of the drive unit are only plastic & Rohacell components used. Different sized mobile phones, “artificial heads” or Laptops can be mounted on different additonally available Holders.

The turn device DE 3800-RH exists of a steady bottom part containing the drive unit, which is preferably fixed on a turntable. The distance of the lower part to the turntable centre is manually adjustable by longholes.



The GPIB (IEEE 488) bus, when operated with the CO2000 Controller, or GPIB (IEEE 488) & LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.
